Wednesday, January 7, 2009

92 Solar Heat Collector Vacuum Tubes

The installation of 92 solar heat collector vacuum tubes began the first week of the new year. We are hoping that the collection of heat and the distribution system for heat will be completed this month. Stay tuned.

Monday, January 5, 2009

Air tightness test

The Isabella Ecohome project team is determined to prove that we can meet or exceed the air tightness required by the The Passive House Institute US,(PHIUS). PHIUS requires the air exchange rate of a Passive House building shell be limited to 0.6 air changes per hour in reference to the buildings ventilated volume of the building, at 50 pascal pressure differential.
One serious lesson learned during the design and construction of this project was the importance of air tightness.

Here is a well written article from the Passive House reference material that describes the importance of air tightness.
Architects of passive houses are familiar with the design of high quality and enduring joints. There are special products to facilitate airtight external construction. The exhibition held during Passive House Conferences is a valuable source of innovative and effective solutions to achieving air tight construction.

Of course details are important - be decisive is a well designed basic approach! An envelope can be airtight only if its consists of ONE undisturbed airtight layer enwrapping the whole volume. For each component of the envelope it must be specified, which part will form the airtight layer (e.g. the particle board or OSB in a roof construction). In a second step it has to be determined, how the airtight layers of the components will be connected to guarantee an enduring air tightness.

Insulation materials generally are NOT air tight. Therefore, the airtight envelope has to be designed and built separately. In timber constructions in most cases wooden composite boards are used (taped at the joints), in masonry construction a continuous inside plastering is sufficient. It is important, that the airtight envelope is continuous, without interruptions. This must be designed for, with particular attention to joints.

The external envelope of a building should be as airtight as possible - this is true for conventional as well as for passive houses. It is the only means to avoid damage caused by condensation of moist, room warm air penetrating the construction (see the figure on the left hand side). Such damage not only occur in cold climates; in hot and humid climates the problem can occur from airflows from the outside to the inside. The cause is the same in both cases: a leaky building envelope.

Drafts in living spaces are not tolerated by occupants any more: Therefore a very airtight construction is essential to fulfill modern thermal comfort expectations. Most building codes, worldwide, require airtight building

Air tightness should not be mistaken for insulation. Both qualities are essential characteristics of a high quality building envelope, but in most cases both have to be achieved independently:
  • A well insulated construction is not necessarily airtight, too. Air can easily pass through insulation made from coconut, mineral or glass wool. These materials have excellent insulation properties, but are not airtight.
  • On the other hand an airtight construction is not necessarily well insulated: e.g. a single aluminium foil can achieve excellent air tightness, but has no relevant insulation property.
  • Air tightness is an important, but not the most important requirement for energy efficient buildings (contrary to the impression given by some popular publications). Further, achieving air tightness should not be mistaken with the function of a "vapor barrier". The latter is a diffusion tight layer: An oiled paper e.g. is airtight, but it allows moisture vapor to pass through. Conventional room plastering (gypsum or lime plaster, cement plaster or reinforced clay plaster) is sufficiently airtight, but allows vapour diffusion.

Infiltration can not guarantee good indoor air quality. Houses built in Germany after 1985, for example, are so airtight that infiltration alone is inadequate to assure acceptable indoor air quality. Yet, these houses are still at risk regarding moisture damage to the construction from moist room air exfiltration. A greater level of air tightness is needed and these houses must be considered as "untight". Their n50-air leakage varied between 4 and 10 h-1. The consequences are draft-discomfort and moisture damage to the construction. The construction was too leaky to avoid exfiltration caused damages - but too tight for sufficient infiltration to maintain room air quality.

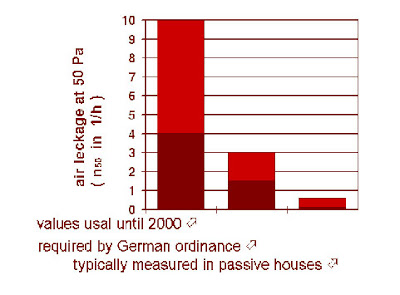

The new 2001 German building code ("EnEV" Energy Saving Standard) for the first time addresses the air tightness of new constructions. Without a ventilation system the n50-airchange- values have to be less than 3 h-1, with ventilation systems 1.5 h-1. From the experience in low energy houses we recommend tighter construction (lower n50) leakages.
In passive houses far better n50 leakage rates are frequently achieved. The requirement is n50 not greater than 0.6 h-1. In practice values between 0.2 and 0.6 h-1 have been measured in passive houses.

Air tightness is not a question whether a construction is massive or light weight. Built passive houses using masonry, timber, prefabricated, lost frame with concrete and steel bearing structure have achieved this superior level of air tightness. Sören Peper, a scientist at the Passive House Institute, proved by a systematic field study that n50 leakage rates between 0.2 and 0.6 h-1 can reproducibly be achieved today. Careful design and accurate workmanship are the prerequisites to success. Construction details needed to achieve tightness are available for all important joint and envelope penetration situations.

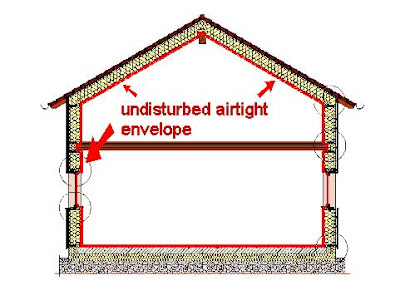

A key principle is maintaining "an undisturbed, airtight envelope", which can be recognized by the "rule of the red line" (see the section in the third figure on the left hand side).
If a construction is not sufficiently airtight, moist room air can penetrate into the construction, condense and cause damage. The problem can be solved by thorough, air tight design.
Air tightness is not a mere nicety of energy saving construction, it is essential to avoid construction damage. Gaps in the construction will lead to substantial humidity transport by convection.

Isabella Ecohome air tightness & insulation approach

The air tightness for the Isabella Ecohome was achieved by first using a closed cell polyurethane spray foam insulation for the difficult to access areas. The product used was UCSC Polar Pro 1.9 the new name for the product is PP 1.1 by Bayer. This is both an air barrier and an insulation product. Here is an excerpt from US Department of Energy’s EERE site regarding closed cell polyurethane spray foam insulation. (

While this type of insulation has greatly improved the ozone depleting blowing agent problems they have had in the past, it is still a hydrocarbon product so we tried to limit the use of it wherever possible.

We filled the majority of the cavities of the double wall system and the attic spaces with a dense packed cellulous material. We used Weather Blanket supplied by Modern Insulation, (, which is a high quality, all-borate, loose-fill cellulose insulation for use in blowing caps in attics and in dense-packing wall and ceiling cavities. It was installed by Dave Joice owner of a company called “The Carpentry Works”.

Weather Blanket is composed of:
  • Over-issue newsprint (yesterday's unsold newspapers), which is the cleanest and highest quality paper available

  • Boric Acid, a highly effective fire retardant

  • A small amount of a light white mineral oil for dust controlCellulose insulation complies fully with CPSP standard HH-I-515E; 16CFR 1209; and ASTM C-739. It is made from cellulosic fibers derived primarily from recycled, over-issue newsprint. This, along with hand sorting, virtually eliminates plastic and trash from our insulation, making it cleaner, less dusty, and more installer friendly. None of these fibers are sourced directly from wood.

In all applications, bags of cellulose insulation are placed in an industrial-quality blowing machine. The product is then blown through several hundred feet of 2" to 3" hose, either into attics or dense-packed into wall cavities. In new construction applications, the wall cavity is formed by stretching and stapling synthetic webbing or poly sheeting across the open-faced studs. A slit is made in the webbing for the hose, the hose is inserted, and the cavity can be viewed as it is filled with dense-packed cellulose insulation. The Sheetrock® is then installed on the studs over the membrane.

The R value of our walls was calculated to be 31, 51 and 60 respectively for each of the wall types. The majority of the wall has an R value of 51. The roof has a R value of 100. With temperatures reaching record lows of 60 degrees below zero F, you can start to understand the importance of insulation and the challenges we faced for this home.

After the insulation was installed a carefully applied layer of polyethylene was installed using LESSCO receptacle box’s for all electrical penetrations and acoustical caulk as the means to secure the poly to the walls. Plywood was used in some areas for the air barrier.

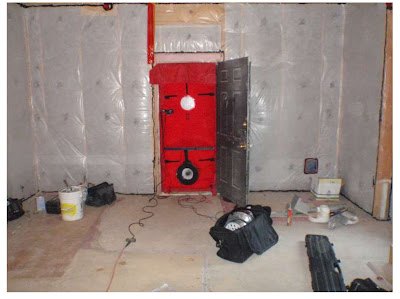

Results of blower door test prior to Sheetrock installation
As we traveled to the project site on November 11, 2008, we wagered on what the results was likely to be once the test was completed. The initial results prior to finding a open vent stack and a few volume calculation errors was 1.1 air changes per hour. Once Mike LeBeau and Dave Joice fired up their handy dandy
infra-red thermography cameras they were able to find where the air leaks were occurring. The blower door test puts the house under negative pressure using the blower door set-up shown below.

After we sealed up problem areas and set a strategy for what needed to occur next, two weeks later we were able to accomplish a .6 air change per hour result, well within the range of comfort that we could meet and even exceed the results required by Passive House design standards once the sheetrock and final finishes were complete. Two areas of concern that we are still investigating include the window air leakage problems and the fact that we used a .4 air change per hour as the baseline for the PHPP energy modeling data. We are hopeful there are easy answers to fixing the air leaks occurring in the windows and we are feeling confident that when the Sheetrock is complete we will be able to reach a .4 in lieu of .6 air changes per hour result.

Passivhus US Conference Tour & New York Times Article

This past November I attended the 3rd North American Passive House Conference in Duluth, Minnesota; with about 150 attendees from all over the world. There were terrific presentations, and exhibitors showing Passive House products. The conference organizer, Katrin Klingenberg and Mike LeBeau, asked if they could organize a tour of our house. I was expecting to ride the bus with the group of attendees; however, due to popular demand the tour bus was full so I offered to drive a couple other interested attendees to the site. My visit, during the ride, with Gary Cole & Russ Hellum resulted in learning more about what other parts of the country are doing to create high performance buildings and how they had discovered Passive House design as an excellent model to help them achieve their goals.

Passive House US is currently a grass roots group of individuals that are motivated in bringing an building design model to the US that has proven and measurable results regarding what is needed to create an extremely low energy consuming home.

On Saturday, the /New YorkTimes/ carried a front page article on Passive House
( if you have
not yet seen it). The article, incidentally, was the /Times/' second most widely emailed story of the entire week and featured many of the people I met at the conference. The only questionable part of the article was the indication that the first Passive House US Certification occurred in California this year when in fact, to my knowledge that honorary position has not occurred.

There were about 60 people that joined me on this tour, and I learned as much from them as they may have learned from us regarding the challenges that Passive House has in the US to become as successful as it is in Europe.
Katrin Klingenberg and Mike Kernagis co-directors of PHIUS wrote a summary of this past years events, which I think nicely summarizes the years successful story. They were kind enough to allow me to include it in my blog.
Dear Friends,
We have been experiencing an exceptional quickening during this past year in interest in energy efficiency and independence, and in the Passive House concept. We'd like to extend very many thanks to all of you for your enthusiasm for the Passive House standard and the opportunities that you see in it and that you have already uncovered.
May it be business opportunities, environmental protection, energy independence and peace, climate change, or passive survivability that motivates us, together we have created a nationwide Passive House movement with an incredible energy and potential.
We established the Passive House Institute US in early 2007 to introduce, advocate, promote and educate about PH technologies when only a handful of people here in the US had heard about it. That handful has now grown into a sizable community. 2008 was the year when PHIUS was authorized by the German PHI to certify projects in North America, which is crucial to being able to uphold the performance standard. The Passive House Certified seal of approval now provides an independent verification for a project, confirming that the standard actually has been implemented successfully and the goals have been reached.
This year we've traveled extensively to promote Passive House and its benefits, held many presentations, spoke at green building and energy efficiency conferences, conducted PHPP workshops. This was also the year when we introduced the Certified Passive House Consultant Training, realizing that at this stage in the development of the broader Passive House Alliance it is crucial to expand the base of those who know how to apply the principles of architectural and mechanical system design. We started the training: 17 graduates finished the class and are now looking to plan and build their first Passive Houses. A second class of 20 will finish soon. The planned training series have tripled for 2009 and we have a long waiting list of people from across the US and Canada. As demand for super-energy efficient buildings increases, there will be a need for skilled and talented professionals to meet it at many levels. The Passive House Consultants are an early branch of a young Passive House Alliance.
This year, the Alliance founder's group met in July and in November. It became very clear in discussions amongst them that a critical mass of individuals, businesses, organizations, city
governments and, perhaps most crucially, /built projects/ (as illustrated in our newly-released book "Homes for a Changing Climate") had been reached. We have been, are, and will continue encouraging and helping regional PH interest groups across the country (California,
Minnesota, Cascadia, DC-area - to mention a few). Some have already let us know that they are ready to form local affiliates to further PHIUS' mission and to advocate for Passive House becoming a voluntary standard for new and retrofit construction here in the United States. And Passive House in the US is outgrowing its single-family shoes: the first 38-unit apartment building is scheduled to break ground in the Spring of 2009. A huge step!
We had a very successful 3rd North American PH Conference this November in Duluth, Minnesota; with about 150 attendees from all over the country (and many from beyond), terrific presentations, and an exhibitor group that doubled from the previous year, showing truly
cutting-edge Passive House components. Such components are now beginning to be available in the US, which is great news. During the tour of built Passive House projects, the PH community had the opportunity to visit the Isabella Lake Home, now officially a certified Passive House after recently passing its blower door test; and the Skyline House, which narrowly misses the standard but is a truly outstanding building.
PHIUS has also been consulting with the University of Illinois Solar Decathlon Team on the entry for '09: The team committed itself to putting a certified Passive House on the Mall, not only for Washington, but also for Illinois, once the house returns to the campus. We hope this is going to be a great national opportunity for Passive House in September of 2009!
Thanks to founding Alliance members there is now a PHPP available entirely in English units - no more metric angst - and climate data, including heating and cooling load data, is now being generated for a good number of cities in the US. We will make those available in the new
In light of the extraordinary developments of this past year Mike and I have decided to restructure PHIUS to adapt to the exploding interest. That's in progress and by the end of January we hope to provide those of you who are interested in joining our efforts with an affiliate
application, procedures and policies to assure a consistent message. Individuals and organizations (professionals, engineers, builders, manufacturers, firms, industry groups) will also be able to participate, as we develop other branches of the PH Alliance.
This is a big step for us. Thank you all for your patience, for your invaluable advice, engagement and investment of time and money during the founders meetings, as well as your financial support to get this transition on its way. We will probably require some more of your patience until the national organizational structure and transition is fully functional and in place. Please know that we are making our best efforts and are very excited to take things to the next level.

Go, go Passive House...Greetings from the PHI in Darmstadt, where Kat has just concluded fruitful meetings with Dr. Feist. Thank you all for a phenomenal year.
We wish you very happy holidays and a happy new year, and we're looking
forward to the next one!

Kat and Mike

Visit the Passive House US website to get current updates on the progress this energetic group of individuals are making to help change the negative impacts we have on our built enviromnets.
